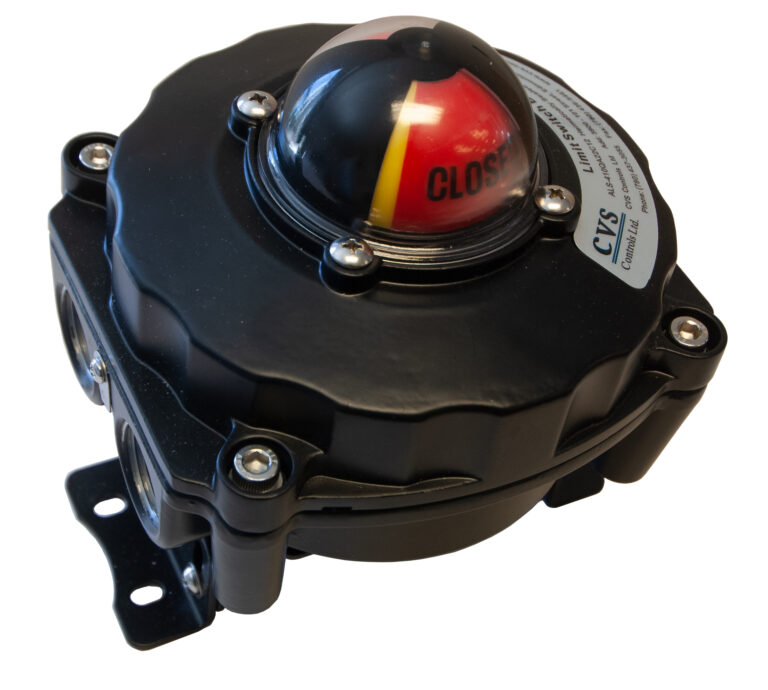

The CVS Controls Series ALS 410 Limit Switch is designed for rotary and linear valves and actuators in hazardous locations.

Equipped with standard NAMUR shaft and bracket, for easy mounting to NAMUR actuators. Secure type 4, 4x rated case with multi angle top and side visual indicator. Red to indicate fully closed position, and yellow to indicate fully open position.

Available in 4 different configurations. 3 rotary, 1 linear.

The limit switch is CSA Approved for Class 1, Div 1, Groups B C D and T6. It also carries and IP66 weather rating and is CE and Ex certified.

Standard operating temperature limit

-40^oC through 50^oC
