Quick Specs

  • CSA approved and is rated EXdIIBT6 explosion proof, zone 1, class 1, division 1.
  • Standard CVS 500 Limit Switch is 2 Single Pole Double Throw(0.6A 125Vdc, 0.3A 250VDC, 16A 125/250VAC) and optional proximity sensors (P16AM-D3N: 8~30VDC, <=150mA or P&F sensors NJ2-V3-N: 8VDC, detected<=1mA, not detected>=3mA)
  • Proximity Sensors

Actuator Applications

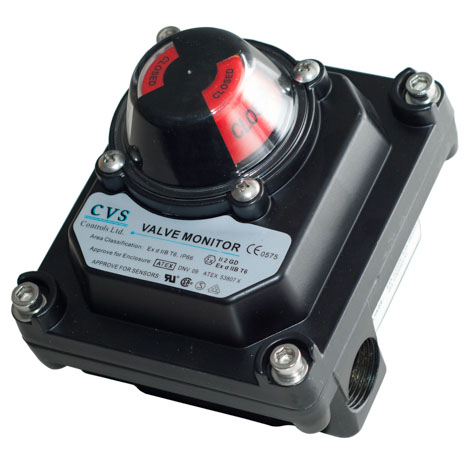

The CVS 500 Limit Switch is designed for valves and actuators in hazardous locations. The limit switch is CSA approved and is rated EXdIIBT6 explosion proof, zone 1, class 1, division 1. Equipped with standard NAMUR shaft and bracket, for easy mounting to NAMUR actuators. Secure waterproof case with multi angle top and side visual indicator. Red to indicate fully closed position, and yellow to indicate fully open position. Available switch configurations are 2 single pole single throw, through 4 single pole double throw.

Optional proximity sensors also available.
